CVT-TRBO-PP

LTR/Passport GOB Application

SCHOLER-JOHNSON INC

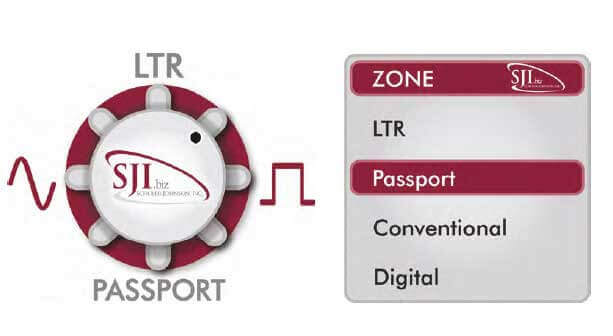

Firmware application for the Generic Option Board to allow the MOTOTRBO radio to support LTR, Classic PassPort and Enhanced PassPort in Analog mode.

Provides a clear migration path from Analog operation to Digital operation for users with existing LTR or PassPort systems/networks.

Key Benefits

QA01839, available as a factory-installed option in North America.
Allows users to add digital-capable radios to their existing analog fleet to facilitate migration to digital operation.
Allows users to operate one radio on MOTOTRBO digital platforms (except for Connect Plus) and Analog LTR and/ or PassPort.

Key Features

Up to 256 Zones, up to 256 Groups/Channels per Zone.
*Supports over 2000 total Groups/Channels.
Programming via standard MOTOTRBO USB programming cable.
Field upgradeable via standard MOTOTRBO USB programming cable.
(LTR/Conventional) Pre-Only MDC PTT ID.
(LTR/Conventional) User selectable scanning across Zones.
(LTR/PassPort) User selectable Group Scan.
(PassPort) Enhanced and Classic operation.
(Enhanced PassPort) Integrated network Emergency call operation.
(Enhanced PassPort) Subscriber priority access.
(Enhanced PassPort) Automatic Channel backup.
(Enhanced PassPort) Expanded neighbor list.
(Enhanced PassPort) Message Trunking.
(Enhanced PassPort) Roam registration on free channel.

CVT-TRBO-PP Application

System Requirements And Types

Radio Hardware/Releases Compatibility:
- Analog Capable MOTOTRBO radio with a Generic Option Board installed.
Interfaces:
- A PC running Windows XP or later is required for programming the

Industries

Fire & Emergency Medical Services, Healthcare. Hospitality, Mining, Oil & Gas, National Government Security, Police, Public Services (non-public Safety Government), Retail, Transportation & Logistics, Utilities.

Application Partner

Motorola Application Partner

Clark Wireless
